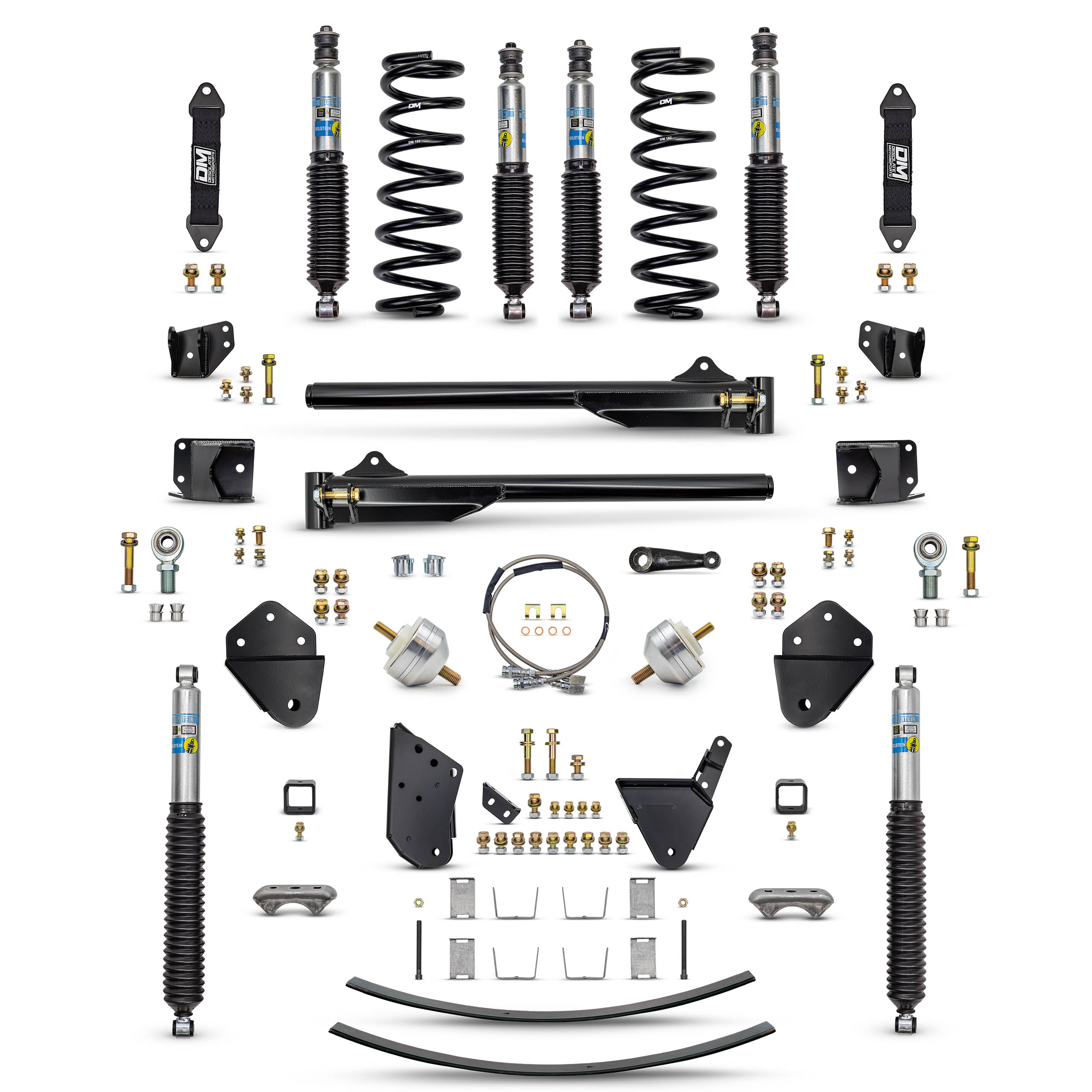

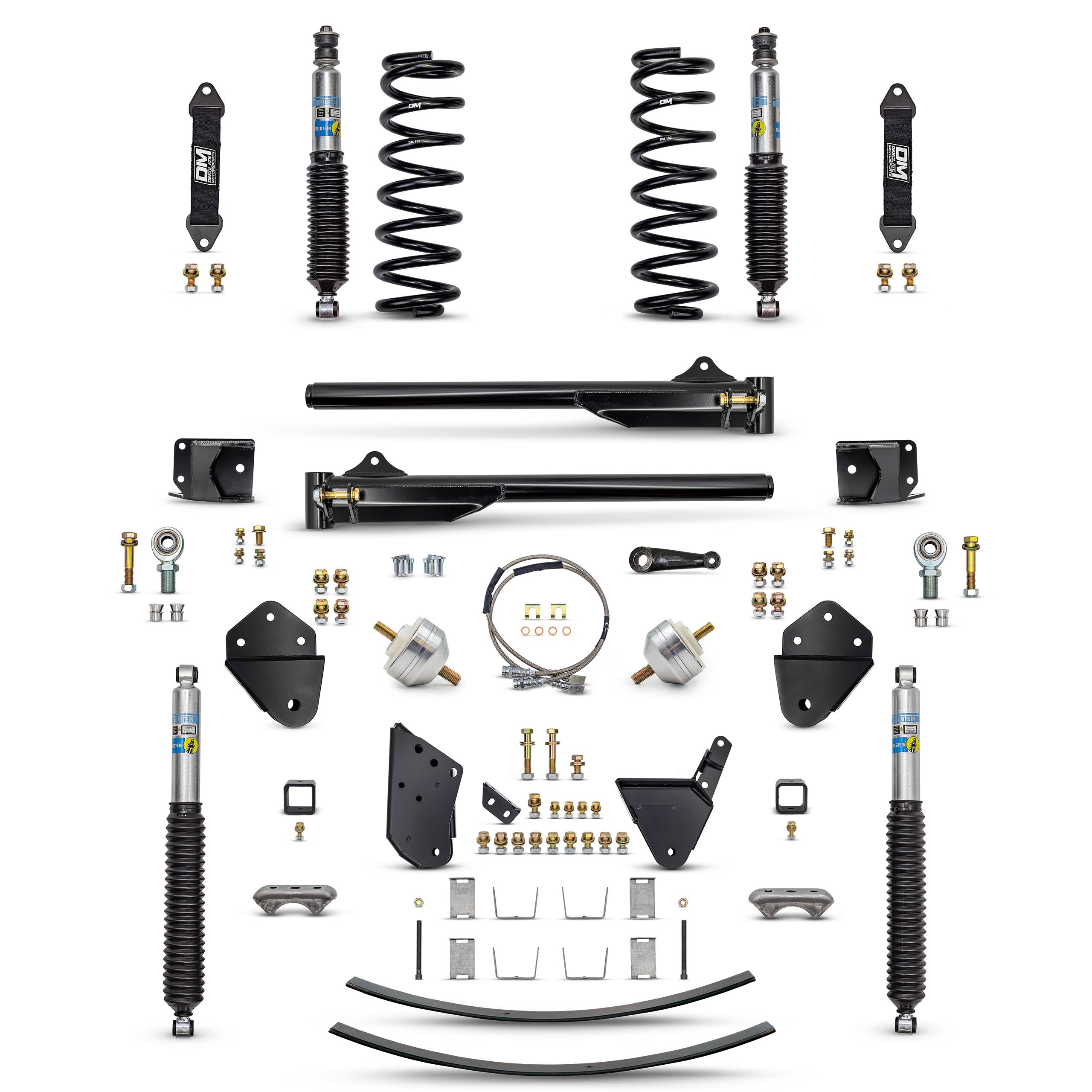

Desolate Motorsports NBC 3.5" Lift Kit with Add-A-Leaf
SKU DES-01107-1
$3,310.99 - $4,636.99
-
Fast Shipping
-
Made in the USA
Description
What is NBC you ask?

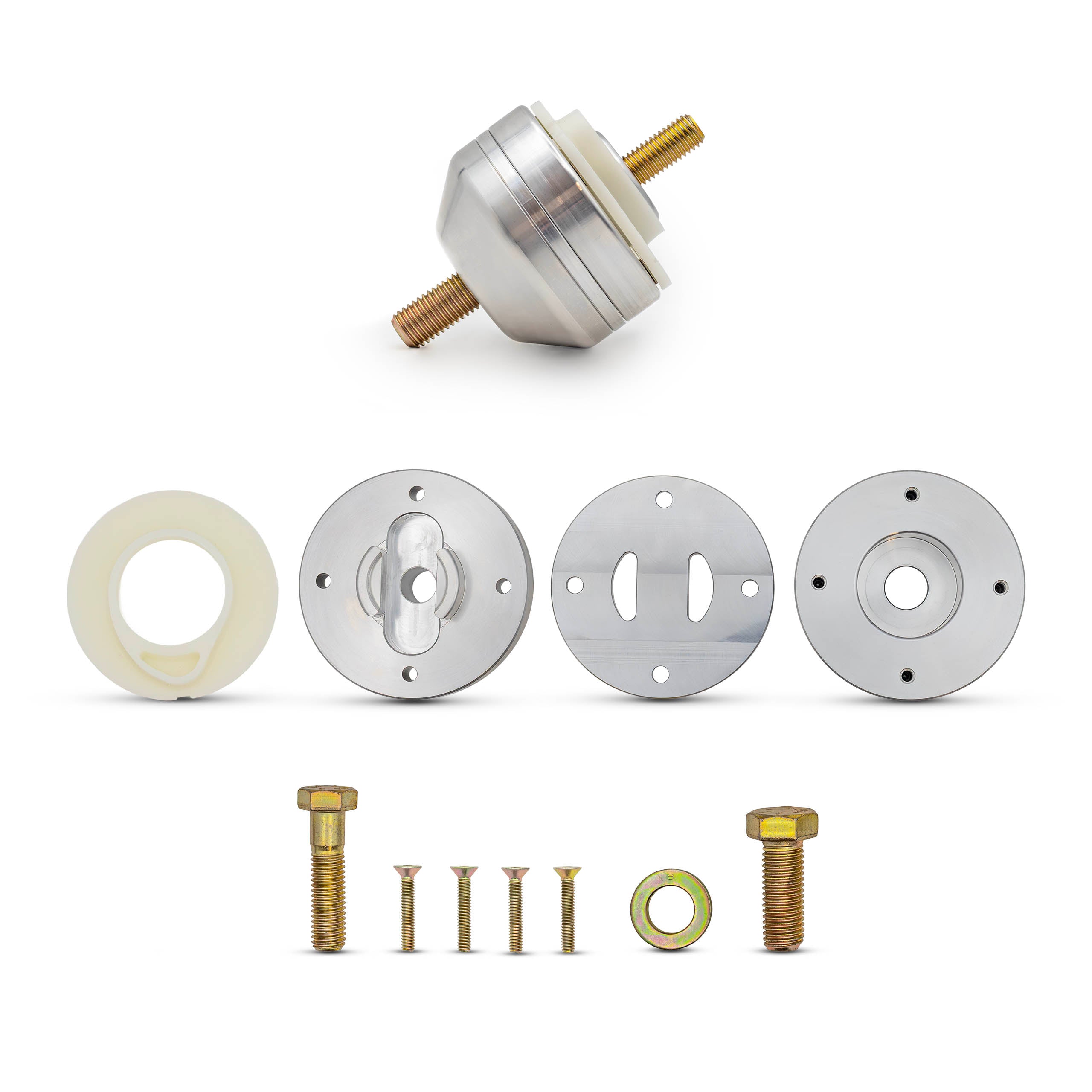

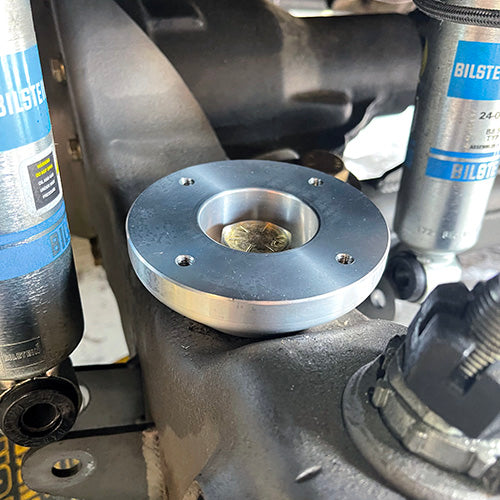

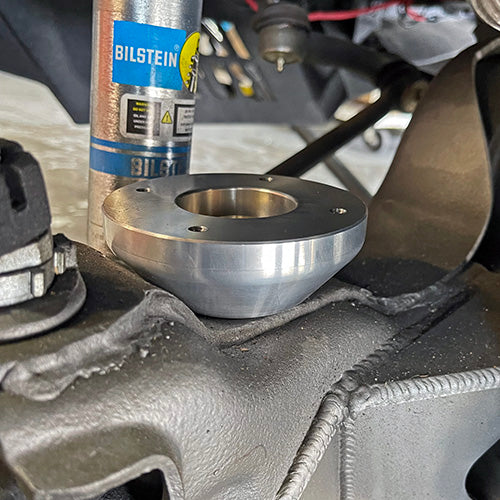

NBC stands for No Beam Core. This means you finally have an option to purchase an awesome suspension system for your 80-96 Bronco or 4x4 F150 with out the hassle of sending us your old core TTB beams. The kit is basically our Stage 1.5 lift with a twist. We added our 2" Drop Beam Pivots with a 2" lift coil paired with an adjustable billet lift spacer giving you that extra boost in ride height you are looking for. Our proprietary three piece billet spacer features an internal interlocking design that will allow you to fine tune your ride height by installing or removing 1/4" middle spacer. We supply an add-a-leaf to install on your existing rear leaf springs to add some rear ride height pair with either a Bilstein 5100 or Fox 2.0 shock. A First of its kind. Choose from our High Clearance or Billet Radius Arms with high quality 1.25″ heim joints to customize this kit. An add-a-leaf and matching rear shocks with extended rear brake line finish off this front and rear combo. This is a perfect set up for a highway driven truck that see's mild off-road/trail usage. Recommend tire size 33" or 35" with minor trimming.
Note: Professional install is highly recommended to ensure optimum performance and safety. This kit requires welding of radius arm brackets to your beam and rear axle perches to re-index pinon angle. All vehicles require alignment after lift install.
Features:
- Eliminates need to return core beams
- Machined billet coil spacer
- Adjustable front ride height
- Provides 3-3.5" of lift
Additional Information
Vehicle Make
80-96 Bronco,
80-96 4x4 F150
