Desolate Motorsports Modified Extended Width TTB Housings with Axle Shafts

SKU DES-01010
$3,920.00 - $4,120.00
Extended Width TTB are reinforced, converted to uniball pivot and increased the track width. Note: A $999 core charge for beam... Read more
Extended Width TTB are reinforced, converted to uniball pivot and increased the track width. Note: A $999 core charge for beams is requi... Read more
Welded Shock Mounts No Shock Mounts
Radius Arm Bracket Weld-On Desolate Radius Arm Bracket
  • Fast Shipping

    Fast Shipping

  • Made in the USA

    Made in the USA

The Extended Width TTB begins with the same camber correction, added plating, and 1" uniball pivots conversion. Replacing the pivot with a uniball gives the beam much more solid engagement in your pivot brackets, eliminates deflection and allows the beam to cycle larger travel numbers without prematurely wearing a stock rubber bushing. The beams are extended 3-4.5” wider per side with a full length truss welded across the driver side beam. Extended inner axle shafts are included to retain your working 4x4. The axle shaft opening on the passenger beam is expanded to prevent the shaft from contacting the beam at full articulation. These beams are recommended for Broncos and 4x4 F150s desiring wider track width and increased wheel travel.

NOTE: There is a $999 Core charge on these beams. Customer must Pay the $999 and on return of useable cores we will return the money. You can click this Link and add the core charge to your order. Your order will not ship until you pay the core charge or we receive good

NOTE: These beams can only be used with Desolate Motorsports Radius Arms and are for Long Travel Coil Over applications ONLY.

Features:

  • Corrects camber on raised Broncos and 4x4 F150s
  • Plating and gussets for reinforcement
  • Better articulation
  • Full Truss
  • Increases track width
Vehicle Make 80-96 Bronco, 80-96 4x4 F150

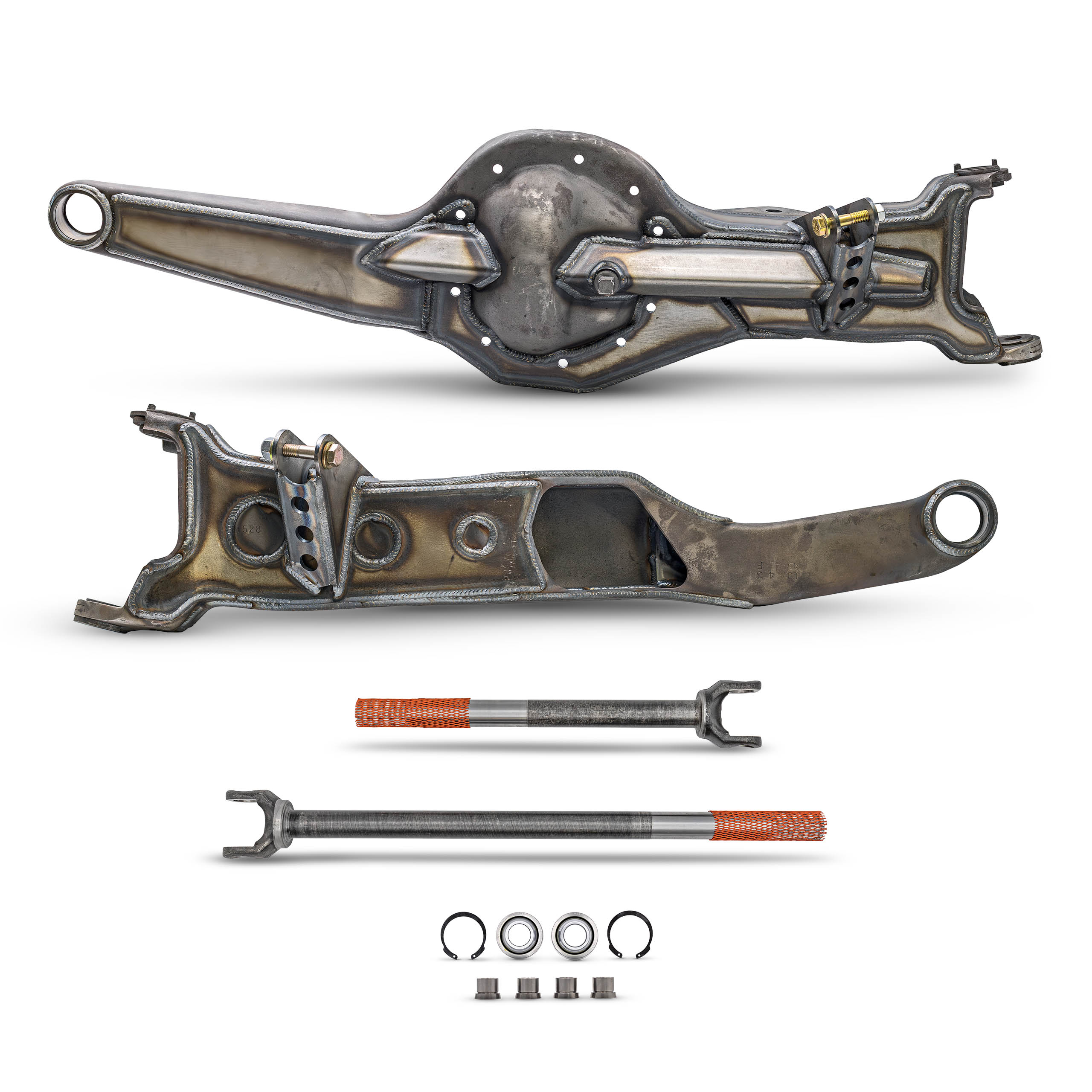

  • Extended Driver Beam (1)
  • Extended Passenger Beam (1)
  • Extended Inner Axle Shafts (Pair)
  • FK 1" Uniballs (Pair)
  • C-Clips (Pair)
  • Misalignments (4)
